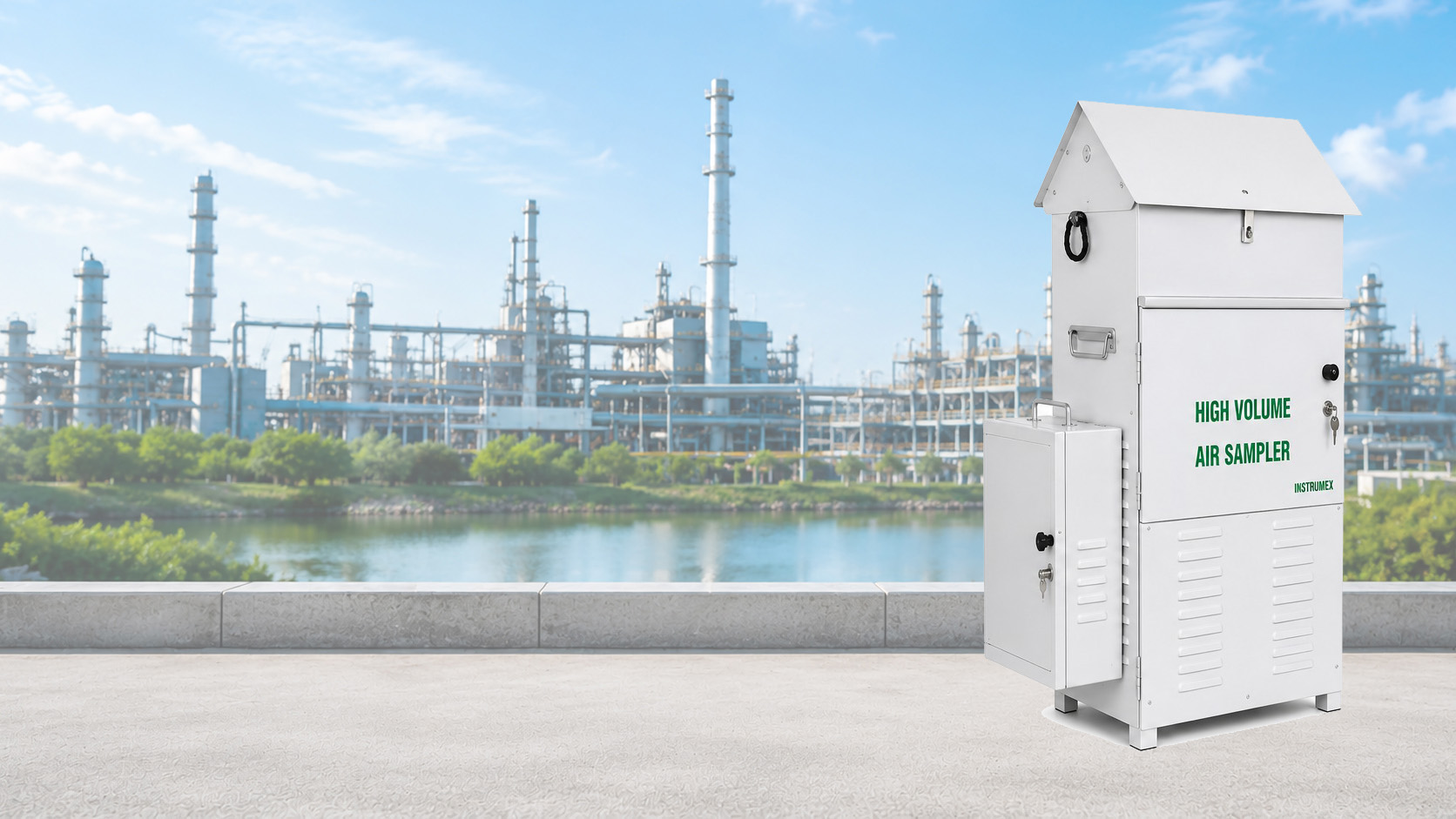

High Volume Sampler
Model No : IPM 164 (BL)
High Volume Sampler manufacturer, supplier, and exporter, Mumbai-India.
The INSTRUMEX High Volume Sampler, Model IPM 164 (BL), is an ambient air sampling system based on a simple design standardized by the USEPA for monitoring Suspended Particulate Matter (SPM) in ambient air. The system also supports simultaneous sampling of pollutant gases such as SO₂, NOₓ, Cl₂, H₂S and CS₂ through its gaseous sampling attachment.
The collected particulate matter and gaseous samples can subsequently be analyzed using suitable chemical and analytical methods to determine pollutant concentrations. The sampler is designed for air pollution measurement in urban as well as industrial areas.
How It Works
The mass concentration of suspended particulate matter in ambient air is determined by measuring the mass of particulate matter collected and the volume of air sampled.
In the INSTRUMEX IPM 164 (BL), the airflow passing through the filter is monitored by measuring the pressure drop across an orifice plate positioned between the filter holder and blower. A calibrated manometer measures this pressure drop, while the flow scale is calibrated in cubic metres per minute.
A microprocessor time totalizer and programmable timer record the duration of sampling, allowing the total volume of air sampled to be determined.
The collected particulate matter is measured gravimetrically, using a balance capable of measurement to the nearest milligram. The collected dust can also be subjected to further analysis using techniques such as electron microscopy, atomic absorption and infrared spectroscopy for identification of trace elements or components.
Key Features
- Based on a simple design standardized by USEPA
- Designed for ambient Suspended Particulate Matter (SPM) monitoring
- Suitable for simultaneous gaseous pollutant sampling
- Supports sampling of gases such as SO₂, NOₓ, Cl₂, H₂S and CS₂
- Flow rate of 0.9 to 1.4 m³/min, free flow
- Collects particles of 10 micron and below on filter paper
- Filter holder accepts standard 8 × 10 inch filter sheets
- Sampling time up to 28 hours
- Time totalizer range: 0 to 9999.99 hours
- Time totalizer detects blower stoppage due to any reason
- 24-hour programmable electronic timer
- Automatic machine shut-off after programmed sampling
- Microcontroller-based time programming and recording
- Power-failure time check facility with battery backup
- Heavy-duty brushless induction motor
- No regular carbon-brush replacement required
- Built-in voltage stabilizer
- Automatic power shut-off beyond 170–270 V
- Normal operating voltage: 220–230 V
- Power supply: 230 V, 50 Hz, single phase AC
- Overall size approximately 400 × 300 × 650 mm
- Proven orifice-plate based flow measurement system
Gaseous Sampling Attachment
The IPM 164 (BL) can be equipped with a separate gaseous sampling arrangement for simultaneous collection of gaseous pollutants.
The attachment provides:
- Flow rate of 0.3 to 3 LPM
- Accuracy of ±2%
- One inlet with four outlets
- Individual flow control through built-in needle valves
- Four No. 35 capacity borosilicate glass impingers
- Impingers housed in an ice tray
- Sampling arrangement as specified with reference to IS 5182 Part V
- Overall size approximately 240 × 125 × 350 mm
The gaseous sampling attachment can be detached from the main sampler for convenient transportation and storage.
Benefits
-
Reliable SPM Monitoring
The high-volume sampling system collects particulate matter on filter paper, allowing the collected mass to be determined gravimetrically for ambient air pollution assessment. -
Accurate Flow Measurement
The proven orifice-plate flow measurement system monitors airflow by measuring pressure drop across the calibrated orifice plate. -
Long-Duration Sampling
With a sampling capability of up to 28 hours and a programmable electronic timer, the system is suitable for extended ambient air sampling operations. -
Low-Maintenance Blower
The heavy-duty brushless induction motor eliminates the need for regular carbon-brush replacement, simplifying maintenance. -
Particulate and Gas Sampling
With the optional gaseous sampling attachment, particulate matter and gaseous pollutants can be sampled simultaneously, providing a more comprehensive ambient air assessment. -
Automatic Operation
The programmable timer, time totalizer and automatic shut-off functions support unattended sampling and help record the operating duration of the system.
Applications
- Ambient Air Pollution Monitoring
- Suspended Particulate Matter (SPM) Monitoring
- Urban Air Quality Assessment
- Industrial Air Pollution Monitoring
- Air Pollution Measurement Studies
- Particulate Matter Sampling
- Simultaneous Particulate and Gas Sampling
- Environmental Monitoring Programs
- Air Pollution Research
- Environmental Laboratories
- Academic and Research Institutions
Why It Helps
Suspended particulate matter is an important indicator of ambient air pollution. Measuring the quantity of particulate matter collected over a known volume of sampled air provides valuable information about the concentration of particulate pollution in the environment.
The INSTRUMEX IPM 164 (BL) provides a dependable high-volume sampling solution for collecting particulate matter and, with its gaseous sampling attachment, supporting simultaneous collection of gaseous pollutants. Its calibrated flow measurement system, programmable sampling timer, time totalizer and brushless blower make it suitable for routine and extended air pollution monitoring applications.
