BOD Analyzer

Model No : IPM-BOD-303

Advanced Respirometric BOD Analysis System for Water & Wastewater Testing manufacturer, supplier, and exporter, Mumbai-India.

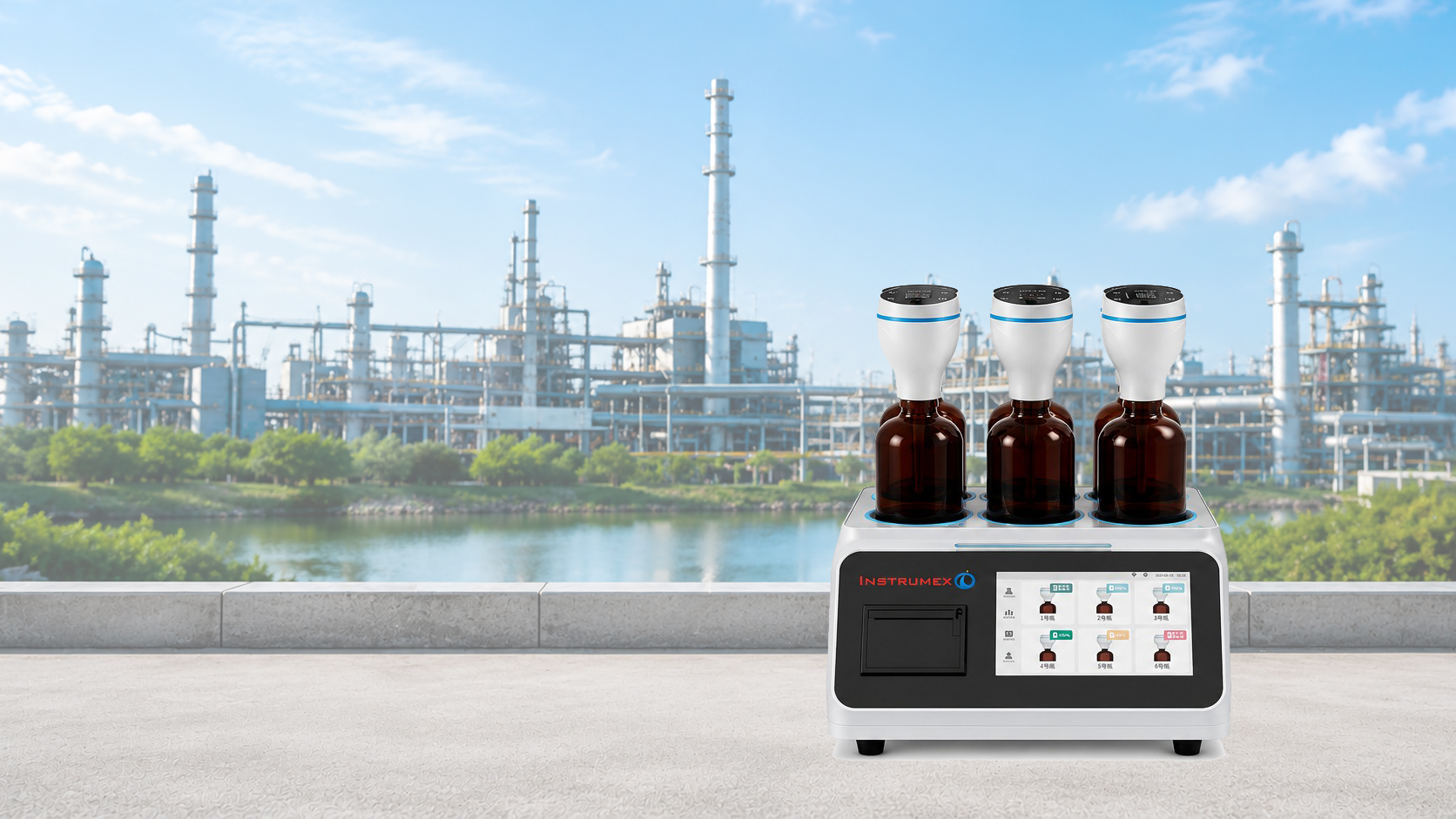

The INSTRUMEX BOD Analyzer (Model: IPM-BOD-303) is a high-precision instrument designed for the accurate determination of Biochemical Oxygen Demand (BOD) in water and wastewater samples. Utilizing the respirometric (manometric) measurement principle, the analyzer provides fully automated BOD analysis without the need for titration or continuous manual intervention.

The system is ideal for environmental laboratories, wastewater treatment plants (WWTP), sewage treatment plants (STP), industrial facilities, research institutions, and regulatory monitoring applications. With simultaneous multi-sample testing capability, automatic CO₂ absorption, and integrated stirring systems, the analyzer ensures reliable, accurate, and repeatable results while simplifying laboratory operations.

Applications

  • Wastewater Treatment Plants (WWTP)
  • Sewage Treatment Plants (STP)
  • Effluent Treatment Plants (ETP)
  • Industrial Wastewater Monitoring
  • Municipal Water Quality Laboratories
  • Environmental Testing Laboratories
  • Pharmaceutical Industries
  • Food & Beverage Industries
  • Chemical Processing Industries
  • Research & Academic Institutions
  • Environmental Compliance Monitoring

Parameters Measured

Water Quality Parameters

  • Biochemical Oxygen Demand (BOD₅)
  • Carbonaceous BOD (CBOD)
  • Biological Activity Assessment
  • Oxygen Consumption Rate

Sample Types

  • Industrial Effluent
  • Sewage & Wastewater
  • Surface Water
  • River Water
  • Lake Water
  • Groundwater
  • Process Water

How It Works

The IPM-BOD-303 operates on the respirometric (manometric) principle, where microorganisms present in the sample consume dissolved oxygen while degrading biodegradable organic matter.

As oxygen is consumed, a pressure change occurs inside the sealed sample bottle. Carbon dioxide generated during the biological process is automatically absorbed, allowing the instrument to accurately determine the oxygen demand based on pressure variation.

The analyzer continuously monitors the process and automatically calculates the BOD value without requiring chemical titration, making the testing process faster, safer, and more reliable.

Key Features

  • Respirometric Measurement Technology: Accurate BOD determination using the internationally accepted manometric measurement principle.
  • Chemical-Free Operation: No titration chemicals required during routine measurement.
  • Simultaneous Multi-Sample Analysis: Available in configurations supporting multiple sample positions for efficient laboratory operation.
  • Automatic CO₂ Absorption: Integrated system automatically absorbs carbon dioxide generated during biological degradation.
  • Built-In Magnetic Stirring System: Individual stirring mechanism for each sample bottle ensures uniform sample conditions throughout the test period.
  • Wide Measurement Range: Measures BOD concentrations from 0 to 4,000 mg/L.
  • Automated Analysis: Continuous monitoring and automatic calculation of BOD values.
  • High Accuracy: Provides reliable and repeatable results for environmental and industrial applications.
  • Data Storage Facility: Stores historical measurement data for future analysis and reporting.
  • PC Connectivity: Supports data transfer through USB and RS232 communication interfaces.
  • User-Friendly Operation: Simple setup and intuitive operation minimize operator workload.
  • Laboratory Compliance: Suitable for routine environmental monitoring and wastewater testing programs.

Technical Specifications

Parameter Specification
Model No. IPM-BOD-303
Measurement Principle Respirometric (Manometric)
CO₂ Removal Automatic CO₂ Absorption
BOD Measurement Range 0 – 4,000 mg/L
Measurement Positions 6 / 12 Position Options
Accuracy ±5% of Reading
Temperature Control 20°C ± 0.5°C
Stirring System Individual Magnetic Stirrer for Each Bottle
Data Storage Internal Memory
Communication USB, RS232
Power Supply 220V AC, 50Hz
Standards ISO 5815, APHA Methods

Optional Accessories

  • BOD Sample Bottles
  • Seeding Nutrients
  • Nitrification Inhibitors
  • BOD Dilution Water System
  • Calibration Standards
  • Additional Bottle Sets
  • Laboratory Accessories Kit

Benefits

  • Accurate BOD Measurement: Provides reliable determination of biodegradable organic pollution in water and wastewater.
  • Simplified Testing Process: Automated operation eliminates complex manual procedures and reduces operator errors.
  • Improved Laboratory Efficiency: Simultaneous analysis of multiple samples increases productivity.
  • Chemical-Free Analysis: Reduces reagent consumption and laboratory operating costs.
  • Regulatory Compliance: Supports environmental monitoring and wastewater compliance programs.
  • Reliable Data Management: Facilitates storage, retrieval, and reporting of analytical results.

Why Choose INSTRUMEX IPM-BOD-303?

The INSTRUMEX BOD Analyzer combines advanced respirometric technology, automated operation, multi-sample capability, and reliable performance into a single laboratory solution. Designed for modern environmental laboratories and industrial facilities, it delivers accurate and efficient BOD analysis with minimal operator intervention.

Proudly Developed in India

Backed by Instrumex's expertise in environmental and analytical instrumentation, the IPM-BOD-303 provides dependable performance, technical support, calibration assistance, and long-term operational value for water quality monitoring and wastewater analysis applications.
