Flow Range (0-5 LPM)

Model No : GilAir Plus

The most Advance Air Sampling Pump in the world!
• Easily Monitor Activity with Your Mobile Device!
Quickly set up a mobile device for remote (via Bluetooth) internal motion monitoring, logging that provides improved sample integrity, in-process sample auditing, snapshots, and automatic reports of current conditions. Complete instructions are included with the GilAir® Plus.

• QuadMode Air Sampling Technology
Wide, dynamic flow range provides high-flow constant pressure and constant flow, and low-flow constant pressure and constant flow without external adapters.

• SmartCal Automatic Calibration
The SmartCal feature uses the dock as a communication link between appropriate calibration devices and the GilAir® Plus. It automates calibration and records pre and post sample calibrations in the pump's datalog.

• Temperature & Pressure Compensation
The GilAir® Plus pump operates in selectable ambient or standard mode correcting for temperature and barometric pressure when equipped with STP option and provides automatic flow correction option for barometric pressure changes.

Features

• Quad Mode Air Sampling Technology
• Smartcal Calibration
• Motion Detection & Bluetooth
• Temperature & Pressure Compensation
• Superior Design & Comfort
• Real-Time Clock With Data-Logging

Product Specifications

Flow Rate Constant flow 20 - 5,000 cc/min. without external adaptors
Constant pressure 1 - 5,000 cc/min without external adaptors
Barometric Pressure ± 5% of calibrated flow from 460 to 1060 mmHg (STP Model Only) in high flow ranges
Battery Life Estimated 300-500 charge/Discharge cycles depending on use.
Sr. No. Pump Usage Weekly Use Est .Battery Life
1 High 40 – 60 hrs 1.0 – 1.5 yrs
2 Medium 20 – 30 hrs 1.5 – 2.5 yrs
3 Low <20 hrs 2.5 yrs
Dimensions 4.3 x 2.4 x 2.4 inches
10.9 x 6.1 x 6.1 centimeters
Certifications US/Canada NRTL (FM) Class I, Div 1 Groups A, B, C, D, E, F, and G;
Class II, Div 1 Zone 0; Class III, T4
ATEX/IECEx II 1 G Ex ia IIC T4


Flow Range (0-5 LPM)

Model No : Gilian 5000

The Gilian 5000 is a high-performing personal air sampling pump leading the industry in back-pressure performance, reliability and ease-of-use. The pump offer flow rates up to 5000 cc/min, and thanks to several advanced features, the pump overcome the main causes of sampling errors, saving you time and money.

Features

• Nimh Memory-Free Battery
• Programmable Functionality
• Highest Back Pressure Capacity
• Intuitive Operation With Lock – Out Feature
• 30-Day Calibration
• Live Flow Display
• Intrinsically Safe Certified

Product Specifications

Flow Rate 20 – 5000 cc/min (Total Range)
800 – 5000 cc/min (High Flow Range)
20 – 800 cc/min (Low Flow Range with low flow adapter)
Battery Life Estimated 300-500 charge/Discharge cycles depending on use.
Sr. No. Pump Usage Weekly Use Est .Battery Life
1 High 40 – 60 hrs 1.0 – 1.5 yrs
2 Medium 20 – 30 hrs 1.5 – 2.5 yrs
3 Low <20 hrs 2.5 yrs
Dimensions 3.2W x 5.4H x 2.3D inches
8.2W x 13.7H x 5.8D cm
Certifications US/Canada NRTL (FM) .... Class I, Div 1 Groups A, B, C, D;
; Class II, Div 1, Groups E, F & G;
Class III, T4
ATEX II 1 G Ex ia IIC T4


Flow Range (0-5 LPM)

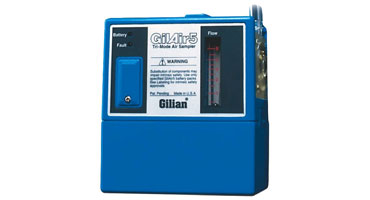

Model No : GilAir 5

GilAir-5 Air Sampling Systems offer both high and low flow sampling capabilities. These capabilities range from 1cc to 3,000cc and 1cc to 5,000cc respectively. GilAir-5 samplers consist of an electronic control system, a pneumatic system, and a rechargeable battery pack. GilAir-5 sampler is equipped with a basic control board, which contains the flow control circuitry. The board also contains the On/Off switch, flow control potentiometer, flow fault indicator, and battery charge indicator.

Features

• External Filter Housing
• Flow Fault And Test Indicators
• Basic, Clock & Program Models
• Optional Low Flow Modules


Product Specifications

Flow Rate 1- 5000 cc/min (Total),
850 - 5000 cc/min (High Flow);
5-500 cc/min (Constant Low Flow);
1-750 cc/min (Constant Pressure)
Battery Life Estimated 300-500 charge/Discharge cycles depending on use.
Sr. No. Pump Usage Weekly Use Est .Battery Life
1 High 40 – 60 hrs 1.0 – 1.5 yrs
2 Medium 20 – 30 hrs 1.5 – 2.5 yrs
3 Low <20 hrs 2.5 yrs
Dimensions 3.2W x 5.4H x 2.3D inches
8.2W x 13.7H x 5.8D cm
Certifications UL - Class I, Div 1, Groups A, B, C, D; T3C
CENELEC - EEx ia IIC T4


Flow Range (0-5 LPM)

Model No : Gilian BDX-II

Gilian BDX-II is designed for lead and asbestos monitoring, its compact, lightweight design is rugged and completely reliable, making it ideal for field applications. The BDX-II accurately monitors for asbestos using the NIOSH Method 7400 or the OSHA reference sampling method. It will also monitor for lead using NIOSH Methods 7082, 7105 or 7300.

Features

• 500-3000 Cc/Min
• Anti-Tamper Control Covers
• Sealed Internal Components
• Rechargeable Battery Pack
• Easy Calibration
• Ul Approved

Product Specifications

Flow Rate 500 – 3000 cc/min
Battery Life Estimated 300-500 charge/Discharge cycles depending on use.
Sr. No. Pump Usage Weekly Use Est .Battery Life
1 High 40 – 60 hrs 1.0 – 1.5 yrs
2 Medium 20 – 30 hrs 1.5 – 2.5 yrs
3 Low <20 hrs 2.5 yrs
Dimensions 3.6" (W) x 3.9" (H) x 2.0" (D)
90 mm (W) x 100 mm (H) x 51 mm (D)
Certifications UL Approved
